AVA 60 Basic & Smart Compact Actuator

AVA 60 Basic & Smart Compact Actuator

smart actuators

AV Actuators have now released the new Basic and Smart 60 series. A compact quarter turn electric actuator offering 60Nm torque output. This ranges overs a compact size but big feature list including an impressing 60Nm capability. The AVA range of basic and smart series of compact electric actuators are proving very popular around the world and All Valves are pleased to be an approved distributor and stockist of AV Actuators.

The Basic series offers a cost effective, small in size and basic feature list. Offering an ABS housing, manual override via allen key, heater and limit switches. The actuator will have F05/07 x 17mm ISO 5211 mounting and is available as either on off or failsafe. Failsafe function is achieved in this series via a re chargable battery back up.

The Smart series as with all AVA Smart series units introduces the OLED smart screen and menu system. This gives you the actuator output and input info whilst also offering local control via menu buttons, the ability to change working angle and speed among other features. The unit offers on off, failsafe, modulating, modulating failsafe, BUS communication, wireless and timer function. Whilst reducing the torque output, the actuator is also available as a 'High Speed' series. Call today for details.

Torque Output: 60Nm
Housing: ABS
IP Rating IP67
Manual Override Yes
End of Travel Limit Switches Yes
ISO5211 F05/07 x 17mm
Torque Limiter Yes



Failsafe Modulating

Hi Speed

BUS Communication



See series overview datasheet below:


      smart actuators                    smart actuators

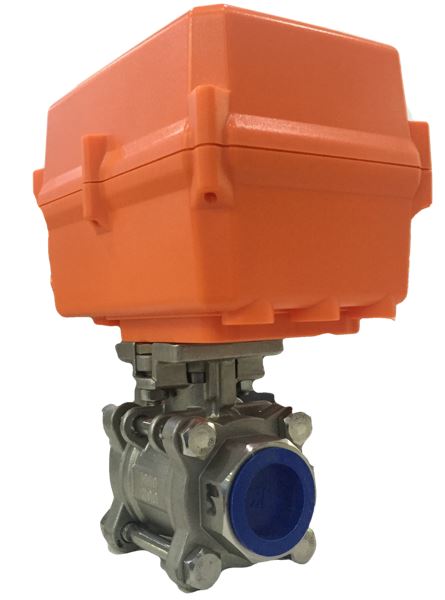

           Typical Datasheet                  With ball valve                     With  Butterfly Valve        User Guide - Coming soon

Coming Soon
