Adler Spa Wafer Pattern Ball Valves

Adler Spa Wafer Pattern Ball Valves

Simply the highest Quality from Adler Valves - Italian made high performance ball valves.

______________________________________________________________

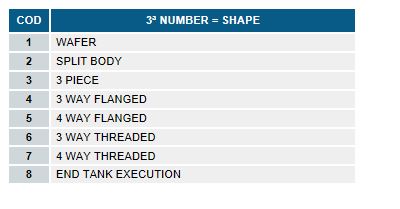

Here we show the FA1 range of Adler wafer pattern ball valves. In addition to the FA1, Adler also offer additional models below - see table below to identify your valve.

Adler Spa Ball Valves Pricing explained

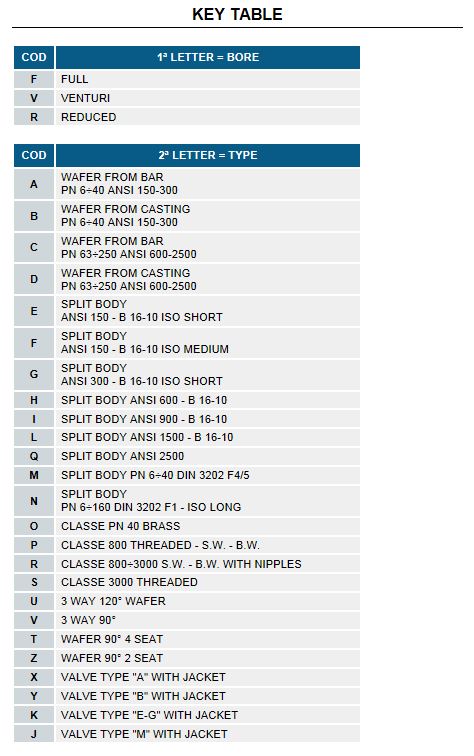

All Adler valves are made to order, use the table below to identify the part number of the valve you require and then contact our Sales Office today for your price and delivery.

Typical Specification:

Ball valve wafer type, full bore manufactured from round bar, according to EN 12516.2; ASME B16.34; ISO 14313; EN 1092-1; EN 1759-1; ASME B16.5; ANSI B1.1.
Available size from DN 10 to DN 50 in carbon steel and in stainless steel.
Rating PN 10 + 40 / ANSI 150 +300.
Double seals on body/insert junction, chevron ring on stem.
Available with oring on stem (patent n-00219688).
Available with fire-safe execution according to ISO 10497 API 607 (on request available according to BS6755 API 607/6FA patent no 00219617).
Valves approved according to directive PED 97/23/EC
Available according to directive ATEX 94/9/EC.
Valves certify in safety system S.I.L. 3.
Valves certify for fugitive emission in class ISO 15848.
With hand lever or pneumatic/electric actuator
.
